F59 Connector



F Connectors | F59 Series
F59xxx

F81G | F56 Series | 75 Ohm Terminator | Compression Connectors

  • Product Features
  • Specifications
  • Product Image Gallery

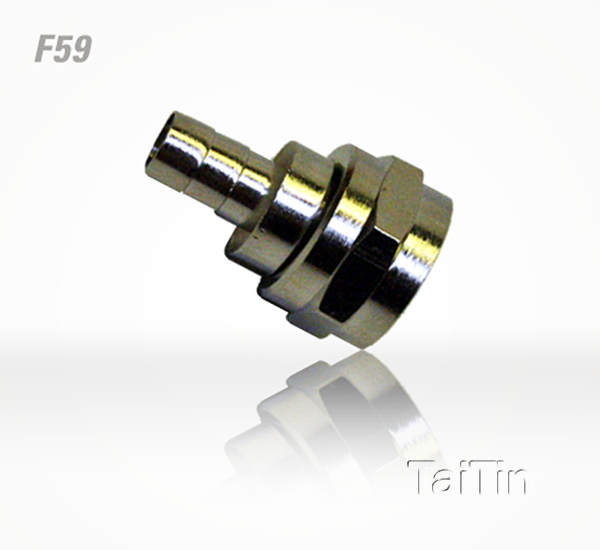

    F59

  • F59-1/4" with 1/4" Ring
  • Inner Diameter: 4.55 mm (0.179 in.)
  • Outer Diameter: 8.45 mm (0.333 in.)

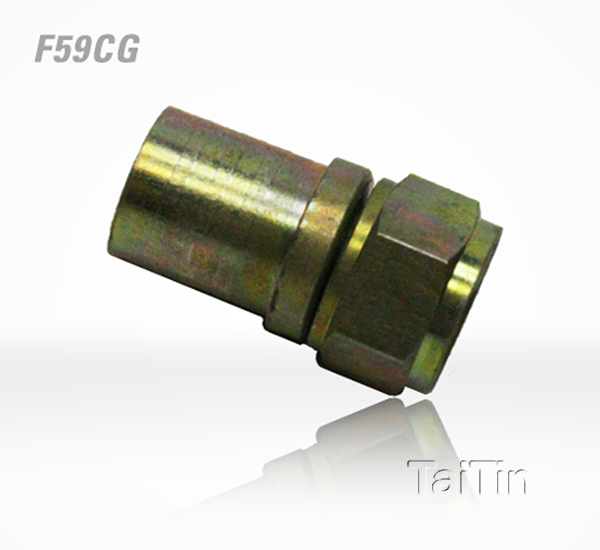

    F59CG
  • Connector with Annealed Ring
  • Inner Diameter: 8.65mm (0.340 in.)
  • Outer Diameter: 9.48mm (0.373 in.)

    F56CGA
  • Connector with Annealed Ring
  • Added O-Ring for Waterproofing
  • Inner Diameter: 8.65 mm (0.340 in.)
  • Outer Diameter: 9.45 mm (0.373 in.)

    • F59P

  • Male Push on Adapter

    F59PT
  • Female-Male Push on Adapter

Specifications in PDFProduct Specifications - F Connectors
