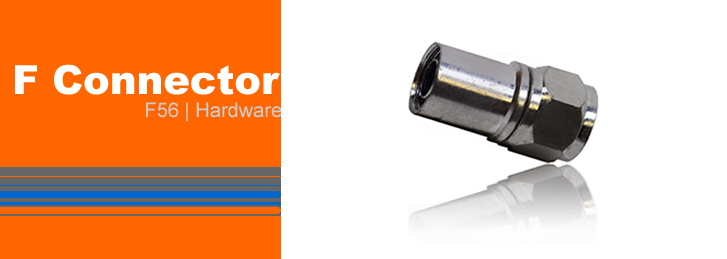

F56 Connector



F Connectors | F56 Series
F56xxx

F81G | F59 Series | 75 Ohm Terminator | Compression Connectors

  • Product Features
  • Specifications
  • Product Image Gallery

    F56

  • Brass Tin Plated
  • F56-1/4" with 1/4" Ring
  • Inner Diameter: 5.8 mm (0.228 in.)
  • Outer Diameter: 9.1 mm (0.358 in.)

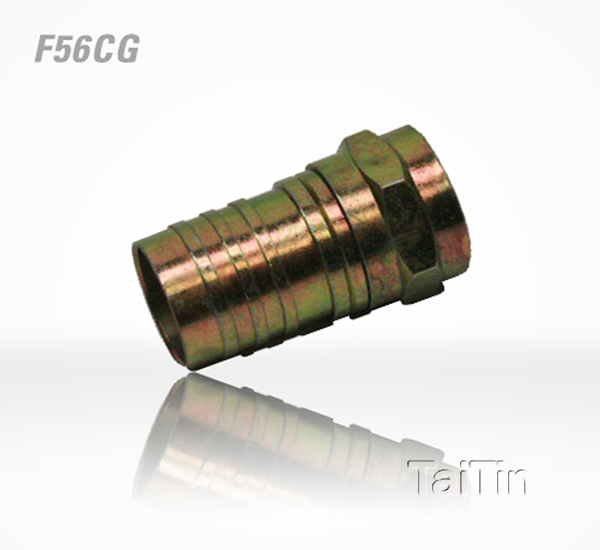

    • F56CG

  • Brass Tin Plated
  • Connector with Annealed Ring
  • Inner Diameter: 9.4 mm (0.370 in.)
  • Outer Diameter: 9.48 mm (0.373 in.)

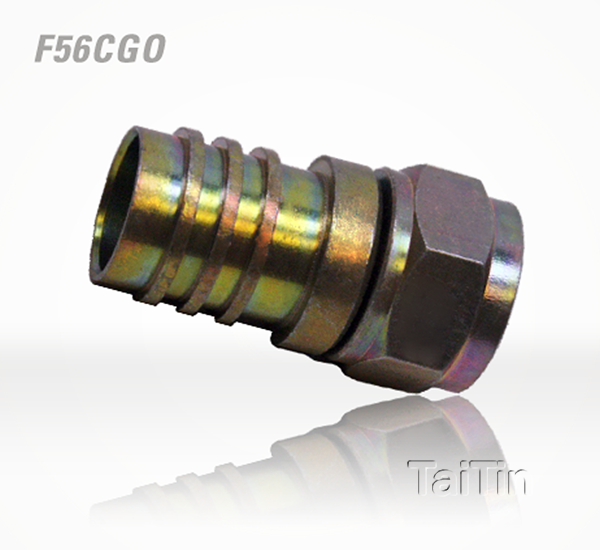

    • F56CGO

  • Brass Gold Cadmium
  • Annealed Ring with O-Ring
  • Inner Diameter: 9.4 mm (0.370 in.)
  • Outer Diameter: 9.48 mm (0.373 in.)

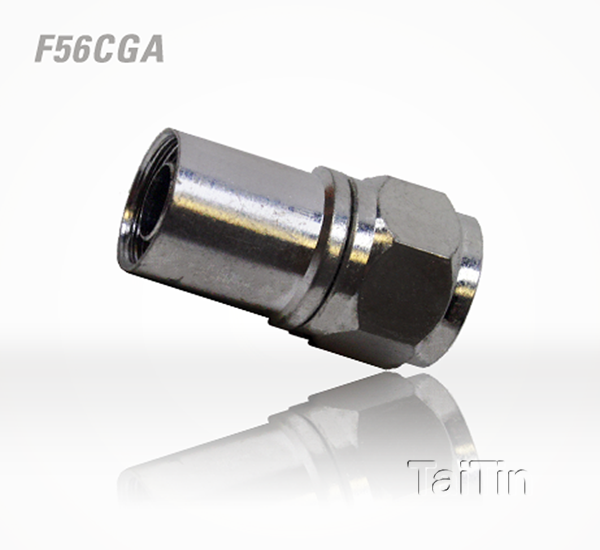

    • F56CGA

  • F56 Smooth Circular Crimp
  • Inner Diameter: 9.4 mm (0.370 in.)
  • Outer Diameter: 9.48 mm (0.373 in.)

Specifications in PDFProduct Specifications - F Connectors
