TaiTin: 88 Series Outdoor Taps

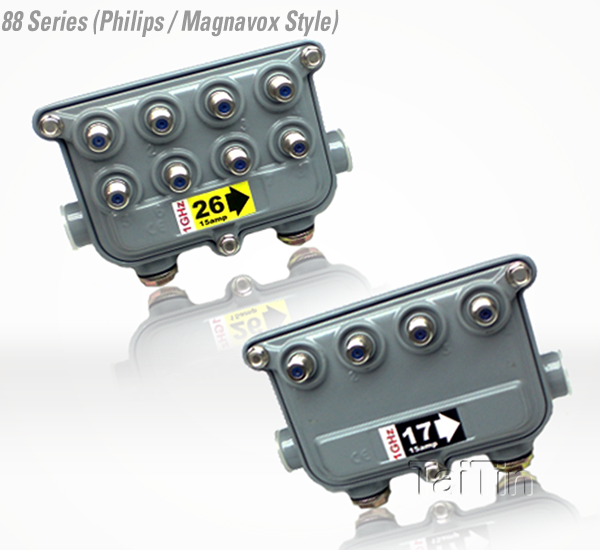

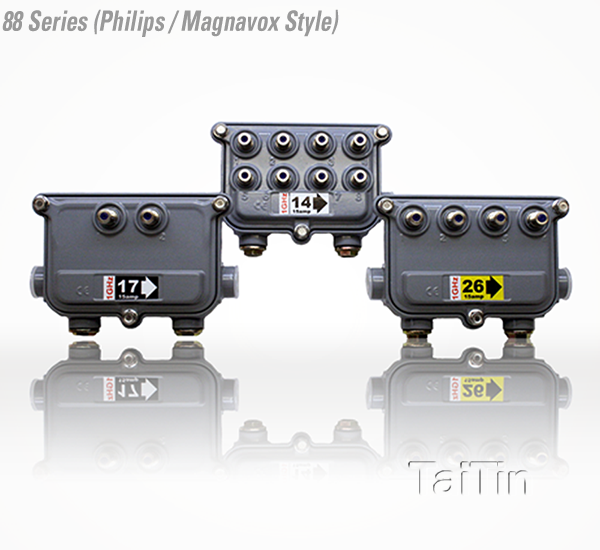

CATV Outdoor Taps | 88 Series | Philips / Magnavox Style

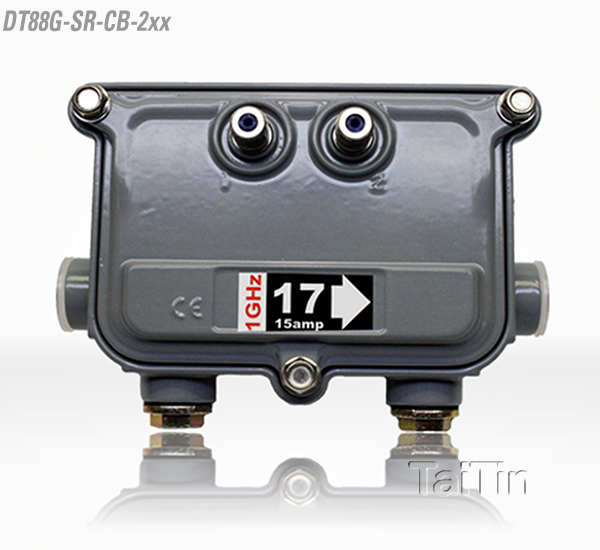

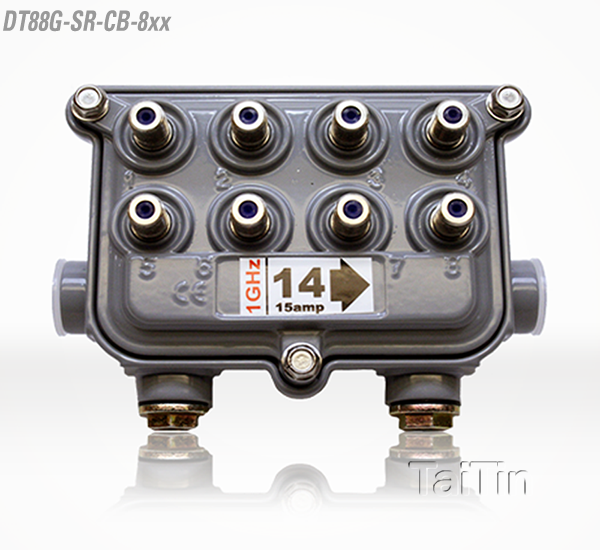

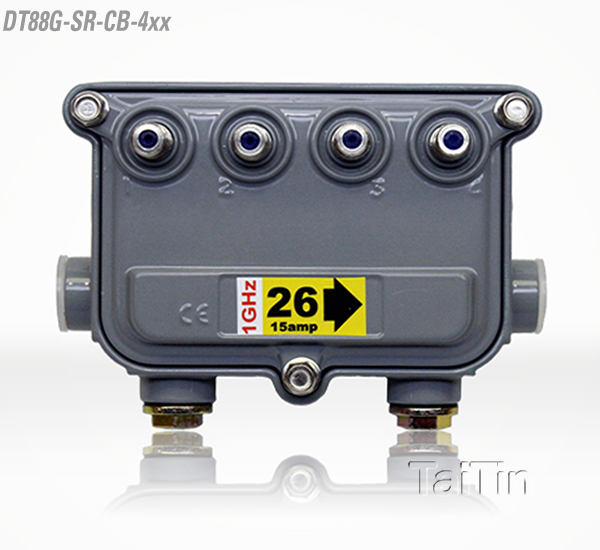

DT88G-SR-CB-xxx (1 GHz), DT88V-SR-CB-xxx (1.2 GHz)

5-1002 MHz Bandwidth (1.218 GHz Option Available)
15 Amp Current Capacity
Blocking Capacitors on the "F" ports for Extended Surge Resistance
Aluminum Alloy Housing Used for Corrosion Resistance
Neoprene Weather Gasket and RFI Shielding at 120 dB

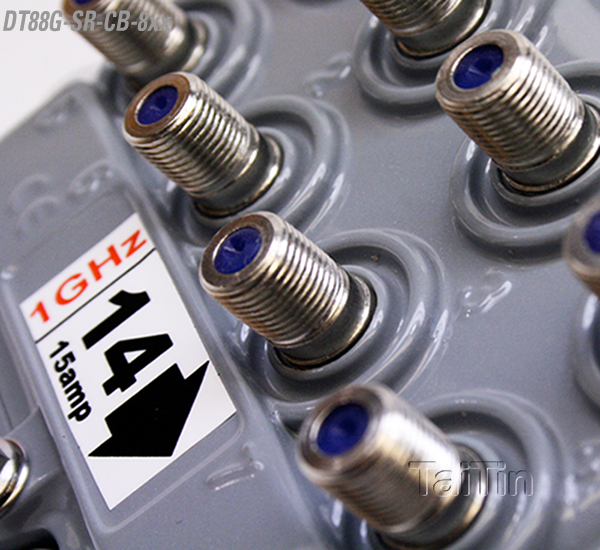

Epoxy Sealed and Nickel Plated Brass " F" Ports
Double Polyurethane Coating for Greater Weather Protection
Operational Temperature Range -40°C to +60°C (-40°F to +140°F)
Power Passing Option: CB: Continuous through Signal w/o Faceplate
Surge Withstand: C62.41-1991 IEEE C6241 Category B3/6kV Combination Wave, 3000 Amp
Easily Interchangeable 2/4/8 port Faceplates
Compliant with SCTE Guidelines
Printed Circuit Boards
Rotational Seizure Mechanism for Aerial or Pedestal Installation
(PIM) Equalizable Tap Options Available (see tab)
Standard Jumper Installed

PIM (Plug-In Module) Conditioning Tap Options (DT88G-SR-CB-PIM-xxx)

Cable Simulator (PIM-CS-xx)– Maintains Low Loss in the Return Drop Path, while attenuating the Forward Drop Signals to the proper System Levels (4, 7, 10, 13 dB Values)
Cable Equalizer (PIM-EQ-xx)– Attenuates the Return Path Signal from the Customer Premise, thereby reducing the effects of system ingress. In addition, tightens the window of return path signal variation allowing for more efficient operation of an optical nodes return transmitter. (3, 5, 6, 8, 10, 11, 13, 15 dB Values)
Return Path Attenuator (PIM-RPA-xx)– Similar to PIM-EQ, except is split dependent and provides less impact on the Forward Drop Signal. (2, 4, 6, 8, 10, 12, 14, 16, 18 dB Values)
Jumper (PIM-JP)– To ensure the continued signal transmission.
High Pass Plug In (PIM-HP-54)– Similar to PIM-RPA except attenuates the Return Path even greater. (54dB Value)
