5-1002 MHz Bandwidth (1.218 GHz Option Available)
-
15 Amp Current Capacity
-
Blocking Capacitors on the "F" ports for Extended Surge Resistance
-
Aluminum Alloy Housing Used for Corrosion Resistance
-
Neoprene Weather Gasket and RFI Shielding at 120 dB
-

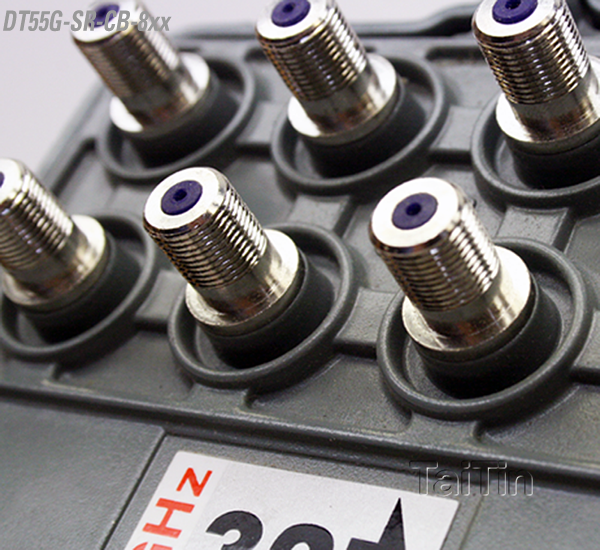

Epoxy Sealed and Nickel Plated Brass " F" Ports
-
Double Polyurethane Coating for Greater Weather Protection
-
Operational Temperature Range -40°C to +60°C (-40°F to +140°F)
-
Power Passing Option: CB: Continuous through Signal w/o Faceplate
-
Surge Withstand: C62.41-1991 IEEE C6241 Category B3/6kV Combination Wave, 3000 Amp
-

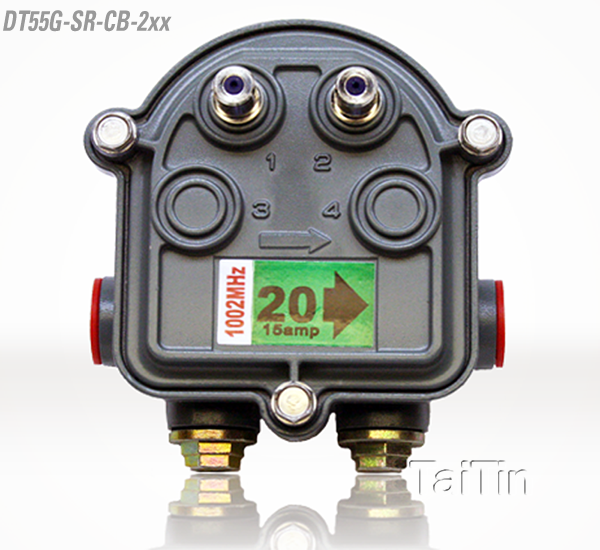

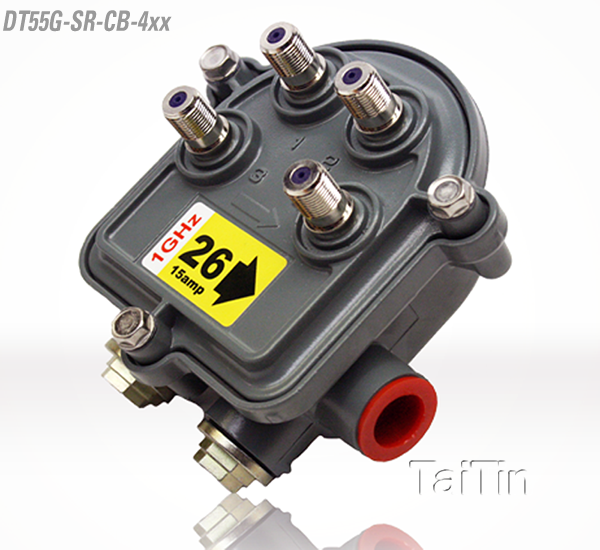

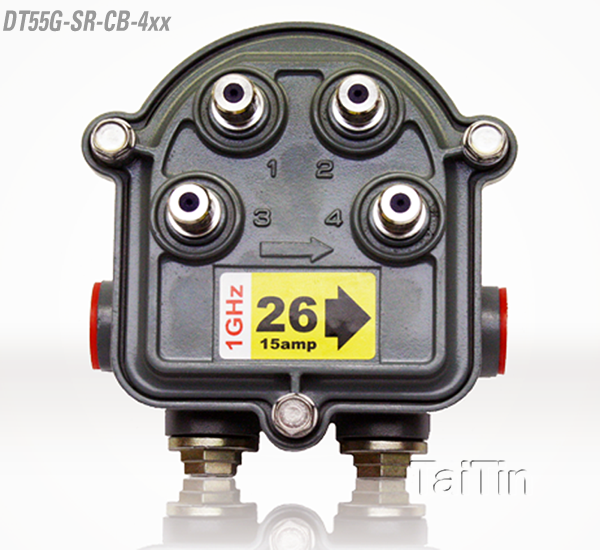

Easy Interchangeable 2/4 port Faceplates
-
(PIM) Equalizable Tap Options Available (see specifications tab)
-
Mainline Splitters, Couplers, and Power Inserters Available (see specifications tab)
LEQ (LEQ55G-x)

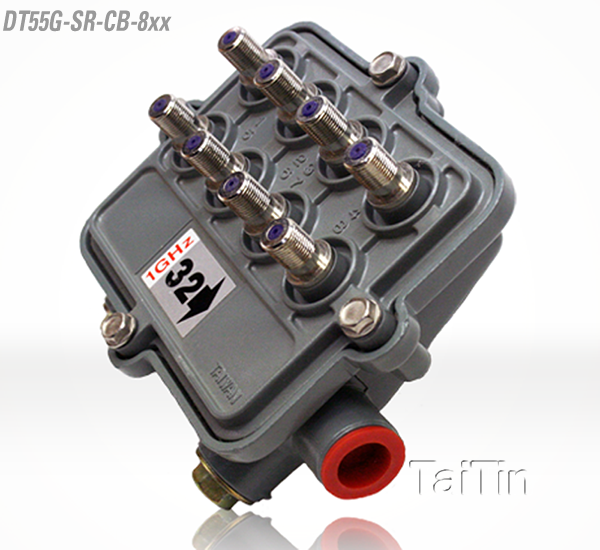

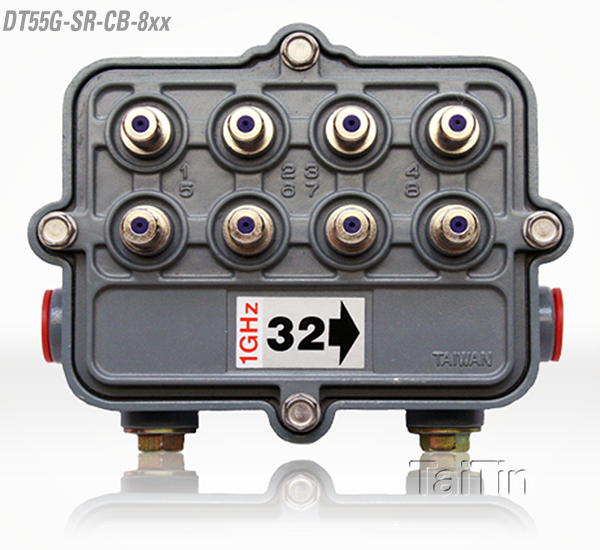

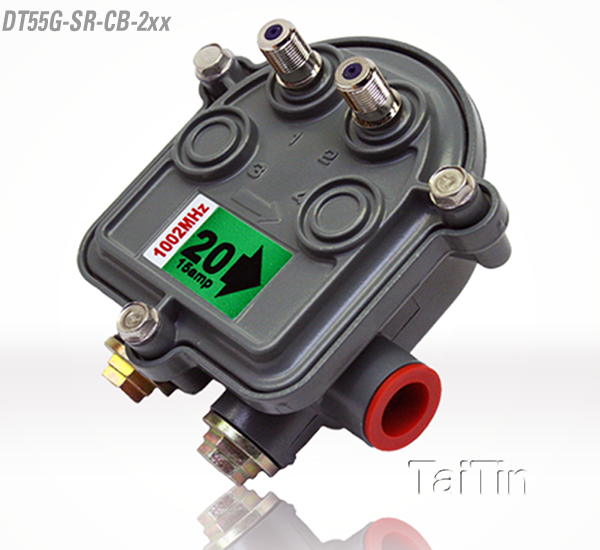

Widebody (DT55G-SR-CB-8xxx)
PIM (Plug-In Module) Conditioning Tap Options (DT55G-SR-CB-PIM-xxx)
-
Cable Simulator (PIM-CS-xx)– Maintains Low Loss in the Return Drop Path, while attenuating the Forward Drop Signals to the proper System Levels (4, 7, 10, 13 dB Values)
-
Cable Equalizer (PIM-EQ-xx)– Attenuates the Return Path Signal from the Customer Premise, thereby reducing the effects of system ingress. In addition, tightens the window of return path signal variation allowing for more efficient operation of an optical nodes return transmitter. (3, 5, 6, 8, 10, 11, 13, 15 dB Values)
-
Return Path Attenuator (PIM-RPA-xx)– Similar to PIM-EQ, except is split dependent and provides less impact on the Forward Drop Signal. (2, 4, 6, 8, 10, 12, 14, 16, 18 dB Values)
-
Jumper (PIM-JP)– To ensure the continued signal transmission.
-
High Pass Plug In (PIM-HP-54)– Similar to PIM-RPA except attenuates the Return Path even greater. (54dB Value)
Reverse Window Option (DT55G-SR-CB-xxx/23
-
The reverse window option allows for more efficient use of high value taps by having a greater loss at higher frequencies and a lower loss in the lower frequencies. This feature is available in 3 tap values: 26, 29, and 32 dB
