Horizontal Splitters



Drop Passives | Horizontal Splitters | G & V-Series

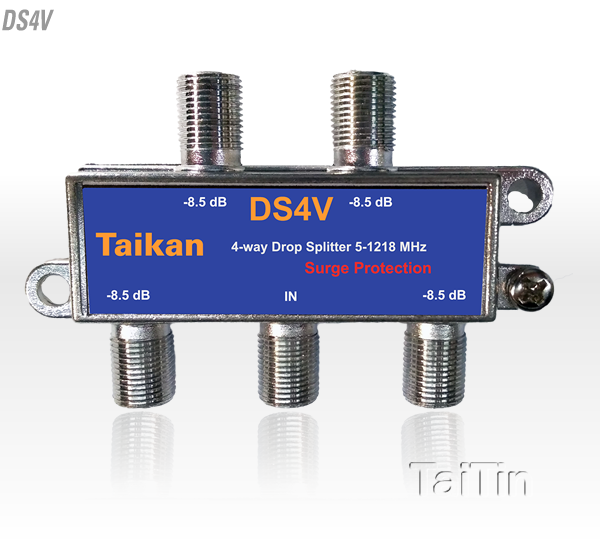

DSxG-H-x or DSxV-H-x

Vertical Splitters | 2, 4, & 8 Port Drop Taps | T & L Shape Drop Taps

  • Product Features
  • Specifications
  • Product Image Gallery
  • 5-1002 or 5-1218 MHz Bandwidth
  • Low Intermodulation Distortion
  • Protection Against Ferrite Saturation
  • Superior Isolation and Return Loss for Return Path
  • Beryllium Copper Round Contact Insertion Pins
  • Solder Back for 120 dB RFI Shielding Effectiveness
  • Zinc Alloy Die cast Housing
  • Tin Plating
  • Compliant with SCTE guidelines
  • IEEE C62.41-1991 Category B3 Combination Wave 6 kV, 3 kA Withstand on Input Port
  • IEEE C62.41-1991 Category A3 Ring Wave, 6 kV, 200 A on all Output Ports

Specifications in PDFProduct Specifications - 1 GHz Horizontal Drop Splitters

Specifications in PDFProduct Specifications - 1.2 GHz Horizontal Drop Splitters

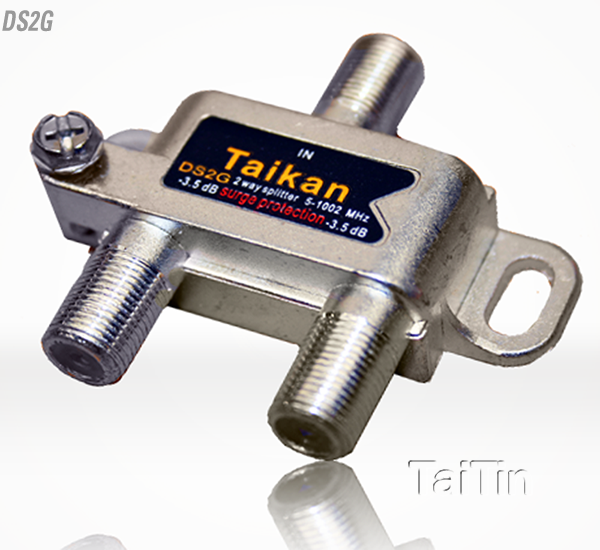

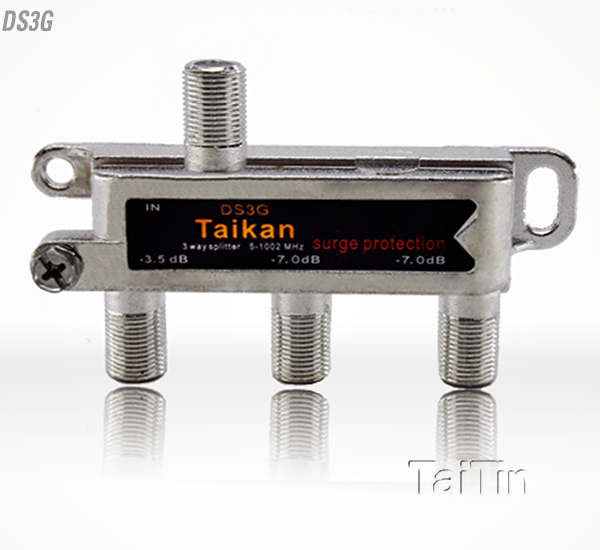

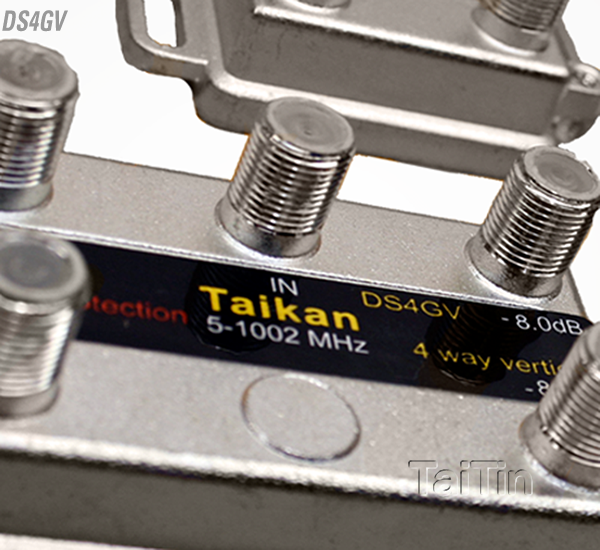

33 Series 2 port 33 Series 33 Series 33 Series
