Optical Receiver



Headend Receiver | Return Path Receiver

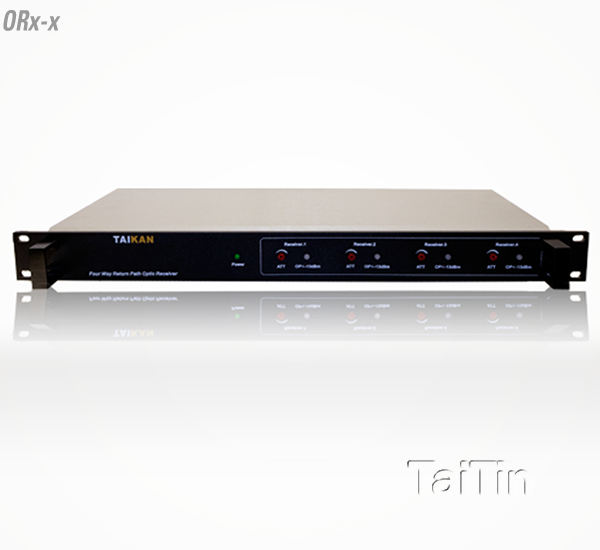

ORx-x

RFoG Return Path Receiver | Forward Path Receiver

  • Product Features
  • Specifications
  • Product Image Gallery
  • 1200~1600 nm Wavelength
  • Receiving Sensibility of ≤ -22 dBm
  • Typical Application of ≤ -10 dBm
  • Optic Reflect Loss of ≥ 55 dB
  • Product Available with LCD Screen (OR4L-S)
  • FC/APC or SC/APC Connector
  • 5-200 MHz Bandwidth
  • Output Power of 80 dB V±2 dB (-10 dBm Receiving)
  • Output Level Adjustable of 0~20 dB (Front Panel)
  • Voltage of 135~250 VAC

Specifications in PDFProduct Specifications - Return Path Receiver

Specifications in PDFProduct Specifications - Return Path Receiver Manual
