5-1600 MHz Bandwidth
-
5-1002 MHz Pass Band
-
1125-1500 MHz MoCA Stop Band
-
Insertion Loss: 0.5, 1.0, 1.5 dB
-
Return Loss: 16, 18, 20 dB
-
Nominal Impedance of 75 Ohm
-
Screening Efficiency Meets EN 50083-2 Class A Standard
-
75 Ohm, Male Female F type Connector Screw Thread
-
W 3/8-32 UNEF inch Connector
-
Copper Tube Housing
-
Moisture Sealing of 15 psi
-
Net Weight of 30 g
-
Dimensions: 13 x 63 mm

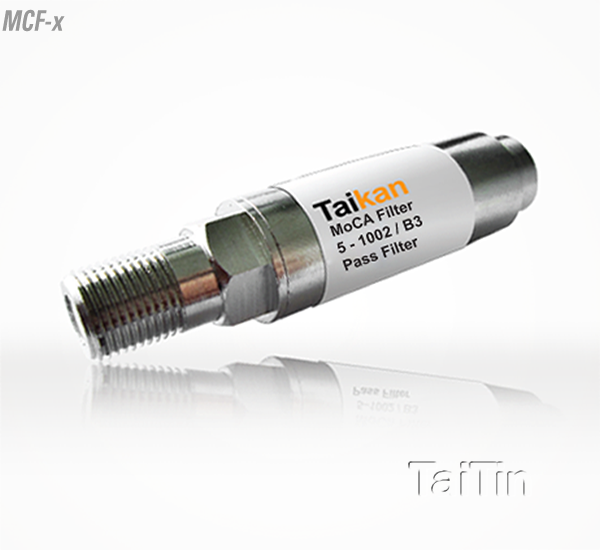

Product Specifications - MoCA Filters (MCF-x)
