860MHz 4 Port Node



Network Nodes | 4 Port Optical Node 860 MHz
ON-860-4-x-x-R-x

2 Port Node 860 MHz or 1 GHz | 4 Port Node 1 GHz

  • Product Features
  • Specifications
  • Accessories
  • Product Image Gallery

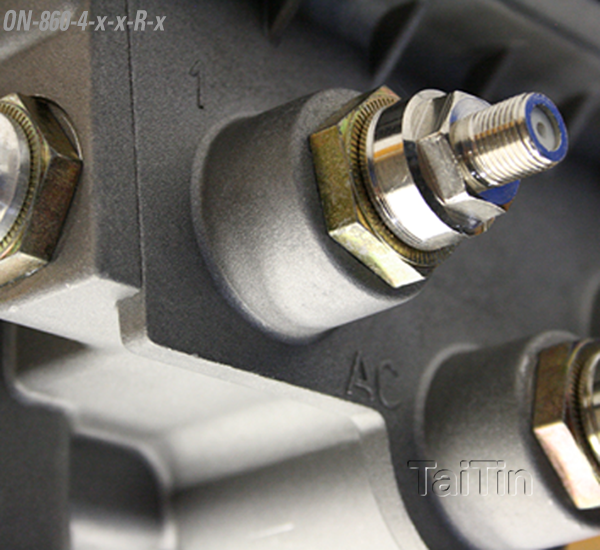

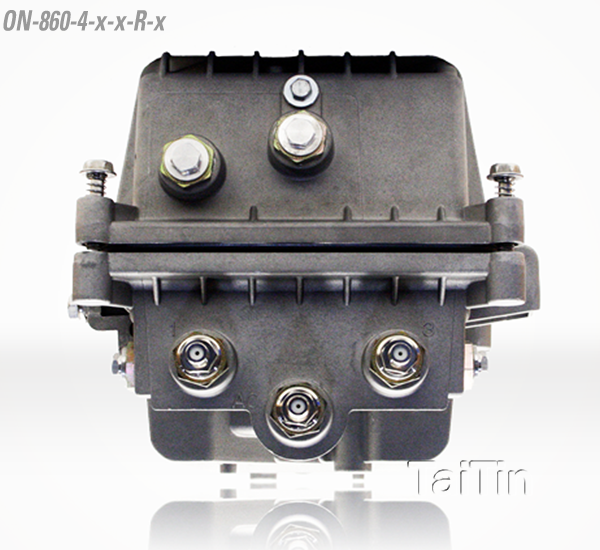

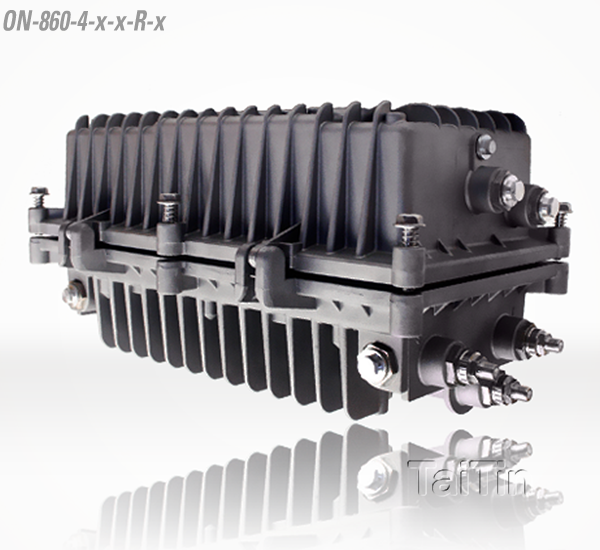

  • 4 High Level Output Ports with GaAs Power Double Amplifier Modules
  • 15 A Current Capacity (Steady State) and 25 A Surge Survivability
  • Surge Resistant Circuitry Ensures Gain Stage Protection without Fuses and Protection from Other Failure Causing Device
  • 40-90 VAC High Efficacy Switch Mode Power Supply
  • Standard Fiber Management Tray Provides Fiber and Connector Storage for Up to 6 Connector Pairs
  • Select 1, 2, or 4 Return (Upstream) Path Optical Transmitters. Standard Model has 1 Receiver and 1 Return (Upstream) Transmitter
  • Local Test Points and LED Indicators on Optical Receivers and Transmitters that Simplify Installation and Maintenance
  • Optical Status Monitoring and Control
  • Optical Node Uses Fixed Value Plug-in Attenuator and Equalizer Accessories
  • Forward (Downstream) Output Test Point and Return (Upstream) Input Test Point for each Port allows for Optimum Design and Alignment.
  • Return (Upstream) Transmitters Available in FP or DFB Formats

Specifications in PDFProduct Specifications - 4 Port Optical Node 860 MHz

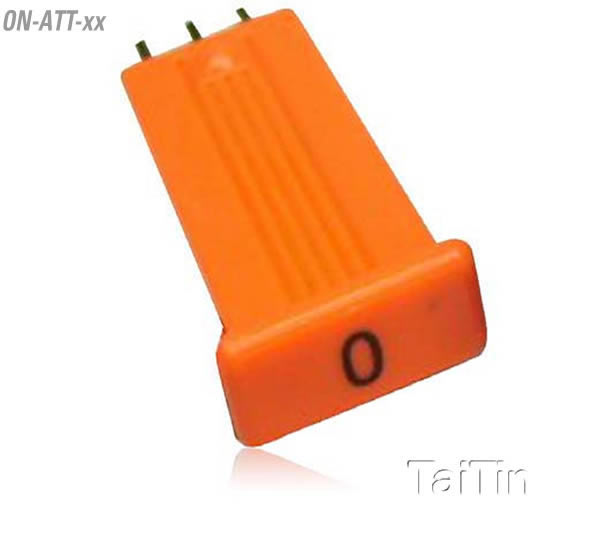

  • ON-ATT-xx (Attenuator Plug In for 4 Port Optical Node)
    • Used to Adjust the Amplifier Levels on the 4 Port Optical Node
    • Available in a 2, 4, 6, 8, 10, 12, 14, 16, 18, 20 or 22 dB Option

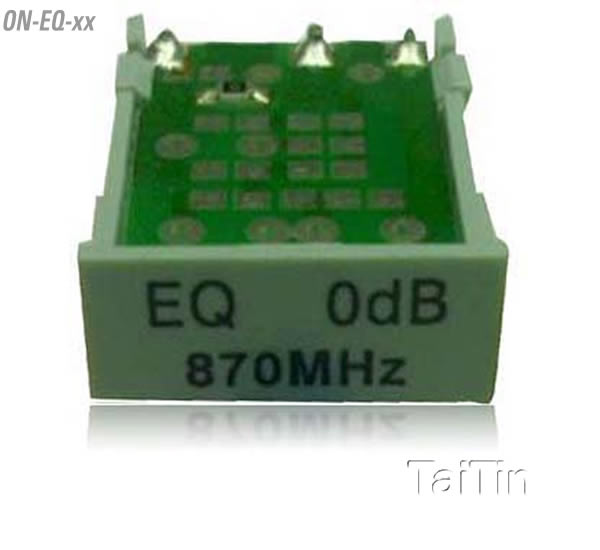

  • ON-EQ-xx (Equalizer Plug in for For 4 Port Optical Node)
    • Used to Increase the Output Tilt of the Receiver and on the 4 Optical Nodes
    • Available in a 2, 4, 6, 8, 10, 12, 14, 16, 18, 20 or 22 dB option

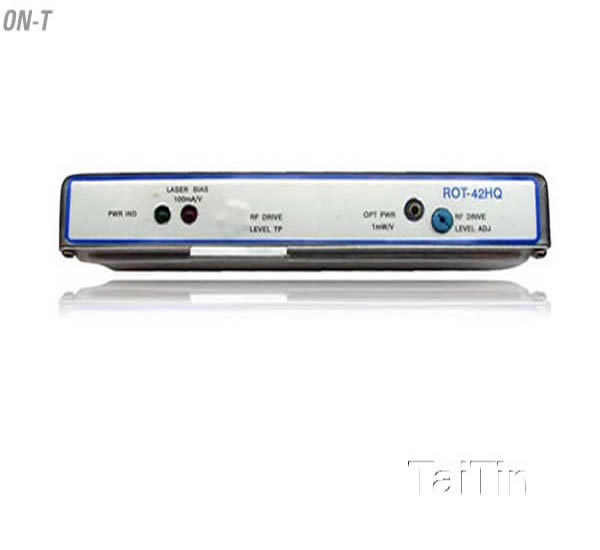

  • ON-T-x (Transmitter Accessory for 4 Port Optical Node)
    • UConverts Broadband RF Signals to Optical Signals
    • Available in a FP or DFB Laser Option

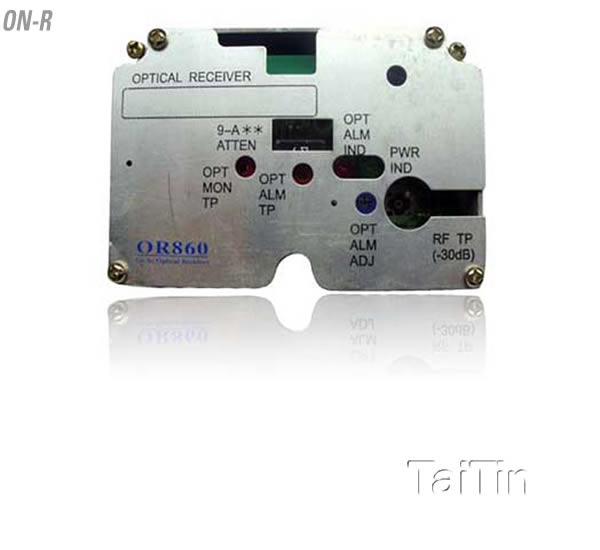

  • ON-R (Receiver Accessory for 4 Port Optical Node)
    • Converts the Received Optical Signal to Broadband RF
